STRIP LED 42W

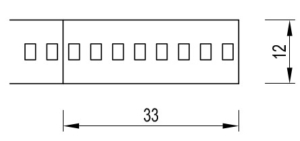

TECHNICAL DRAWING:

CHARACTERISTICS:

  • Very high luminous flux
  • 6000 Lumen per meter
  • High Leds per meter density
  • Cutting every 33mm
  • Three color temperatures available

TECHNICAL TABLE:

CODE Watt/m Temp. Lumen CRI Led/m V/input Cut mm IP
B01N110 42 W 3000°K 5900 80 240 24Vcc 33mm 12×1,5 IP20
B01N111 42 W 4000°K 6000 80 240 24Vcc 33mm  12×1,5 IP20
B01N110 42 W 6000°K 6100 80 240 24Vcc 33mm  12×1,5 IP20

New generation LED strip, ideal for applications where a very high standard of illumination is required.

Its 42W per meter make lighting points invisible, even if applied without lens or transparent diffuser.

This dimmable 42 leds per meter strip is the perfect solution to create perfectly lit scenarios.

Thanks to a very small cutting section, it is easy to adapt to any length requested and to apply to any profile.

The size of the welding point is very large, favoring all the welding operations of the wires and a long life for the connection.

DATA SHEET
